 Embedded (Stand Alone) DVRs

 Embedded DVRs

Do not use a Windows® operating system. In fact, there is no software at all on the hard drive. All functions are contained (embedded) on software encoded computer chips. View in real time. Easy setup. The Embedded series Digital Video Recorders (DVR) operate just like a VCR. However, they have many features that make them more powerful and easier to use than even the most advanced VCR.

This DVR converts analog video (NTSC or PAL) to digital images, and records them on a hard disk drive. Using a disk drive allows users to access recorded video almost instantaneously without having to rewind or fast forward tape. There is no need to adjust tracking. You can freeze frames and forward or rewind without image streaking or tearing. Digital video can be indexed by time/date or events, and users can instantly view video after selecting the time/date or event.

All features can be controlled from the front panel or from any computer. The rear panel provides convenient connection for video
and audio input/output.

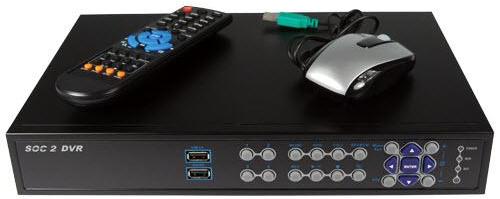

4 Channel Embedded DVR


  • H.264 Video Compression and Network Streaming
  • Multi-Lingual
  • USB Backup
  • Remote setup
  • monitoring, backup
  • alarm notification
  • remote software upgrade
  • multiple DVR consolidation
  • system configuration
  • support Windows 7, Vista, XP, and 2000, Internet Explorer/Firefox/Chrome/Safari: Remote monitoring
  • Programmable HTTP / Control / Data port
  • Mac OS supported for remote viewing
  • This system also works with smart phones including: iPhone, Blackberry, and Android.
  • All DVR functions controllable through remote access
  • 4 record quality settings
  • a Manual/scheduled/motion detection recording
  • Video Motion Detection
  • Video Loss Detection
  • 2 year warranty

Specifications:

  • Video Format: H.264
  • Video Input: 4 CH composite BNC
  • Video Output: VGA & Composite BNC
  • Audio In: 1 CH RCA
  • Audio Out: 1 CH RCA
  • Storage: 500 GB HDD
  • Resolution: 720 × 480 (NTSC) 720 × 576 (PAL)
  • Display Rate: Real Time 120 fps
  • LAN Connector: RJ45
  • Power: 12 V
  • Dimensions: 8½” × 8” × 1½”

Includes:

  • IR Remote Control
  • USB Mouse

D4SSA-DVR-4: $349.99

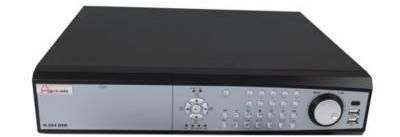

16 Channel Embedded DVR

 Features:

  • Industrial durability shock resistance & stability
  • Records 480 fps on all 16 channels simultaneously in high resolution (720×480)
  • New H.264 compression allows longer record time in same amount of space
  • USB backup
  • multi-lingual
  • smart search and playback and operate network
  • all DVR functions controllable through remote access
  • Streaming video for mobile phone or PDA
  • no apps required (iPhone, Android, & Blackberry supported)
  • N-streaming internet/intranet remote access
  • DVD rewrite drive for burning recorded video to DVD
  • Easy to retrieve video
  • time and alarm information
  • easy to restore and power on in case of power failure
  • up to 16 wired cameras
  • includes mouse and remote control
  • 2 year warranty

Specifications:

  • Video input: 16 channel composite BNC
  • Video output: HDMI, Composite BNC, VGA output
  • Audio input = 2 CH RCA
  • Audio output = 2 CH RCA, Bidirectional Audio
  • Alarm input: 8 CH
  • 3 Alarm outputs
  • LAN Connector: RJ45
  • PTZ Control: RS485 Real Time 480 fps
  • Storage:  1 TB
  • HDD, Power: 15 V
  • Dimensions: 17” × 15” × 3½”

Includes:

  • IR Remote control
  • Mouse

D4SSA-DVR-16: $999.95

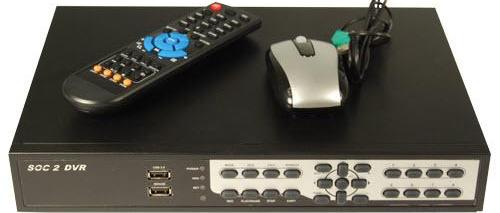

8 Channel Embedded DVR

Features:

  • Industrial durability shock resistance & stability
  • Records 8 channels
  • simultaneously in high resolution (720×480)
  • New H.264 compression (allows longer record time in same amount of space)
  • Real time recording
  • USB backup
  • multi-lingual
  • live network playback capability
  • all DVR functions controllable through remote access
  • Easy to retrieve video
  • time and alarm information
  • easy to restore and power on in case of power failure
  • up to 8 wired cameras
  • 2 year warranty
  • This system also works with smart phones including: iPhone, Blackberry, and Android.

Specifications:

  • Video input = 8 channel composite BNC
  • Video output = Composite BNC VGA output
  • Audio input = 2 CH RCA
  • Audio output = 2 CH RCA
  • Alarm input = 8 CH,
  • 3 Alarm outputs
  • LAN Connector = RJ45
  • PTZ Control = RS485
  • Real time 240 fps
  • Storage= 500 GB HDD
  • Power= 12 V
  • Dimensions = 11” × 10” × 3”

Includes:

  • IR remote control
  • USB Mouse
  • 8 Channel Embedded DVR

D4SSA-DVR-8: $489.95

19" LCD Monitor

19" LCD Monitors this monitor can be connected to any one of our DVR's
using the VGA connection.
Specifications and Features

  • LED Backlight      Yes
  • Display Colors     16.7 million
  • Scanning/Frequency Vertical
  • Refresh Rate       55-75Hz
  • Horizontal Freq.   30-80kHz

Video Interface Type VGA

  •  Resolution and Preset Modes
  • Maximum Resolution     1366 x 768
  • Features Tilt Optical Characteristics
  • Contrast Ratio: 700:1
  • Dynamic Contrast Ratio: 100,000,000:1
  • Brightness: 200 cd/m²
  • Response Time: 5 ms
  • Horizontal Viewing Angle: 90 degrees
  • Vertical Viewing Angle: 65 degrees

Physical Specifications

  • VESA Mount Compatible: No
  • Unit Dimensions (WxHxD): 17.6" x 12.9" x 6.7"
  • Power Consumption: 15W

D4SLCD-19: $194.95
